Product Features

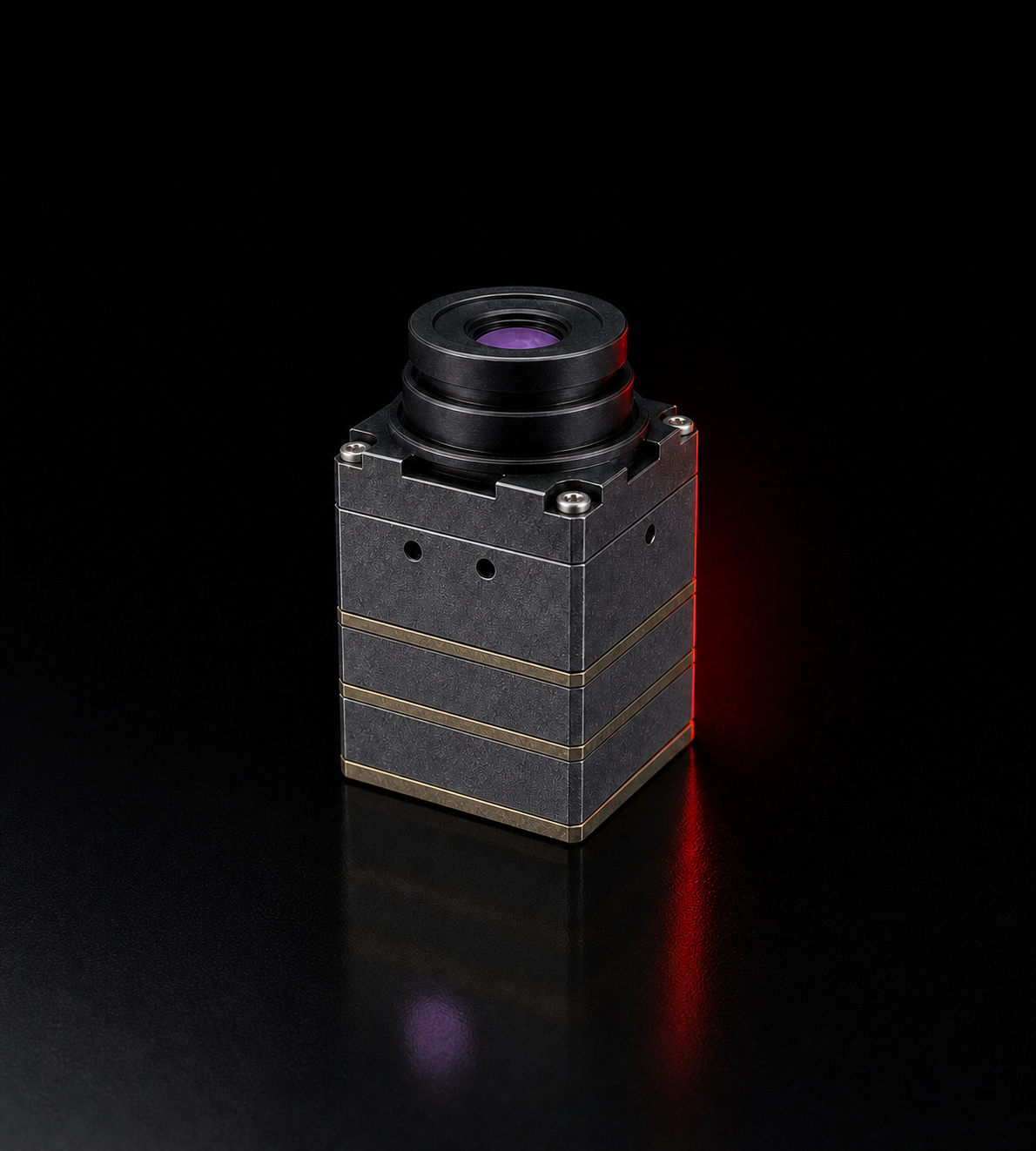

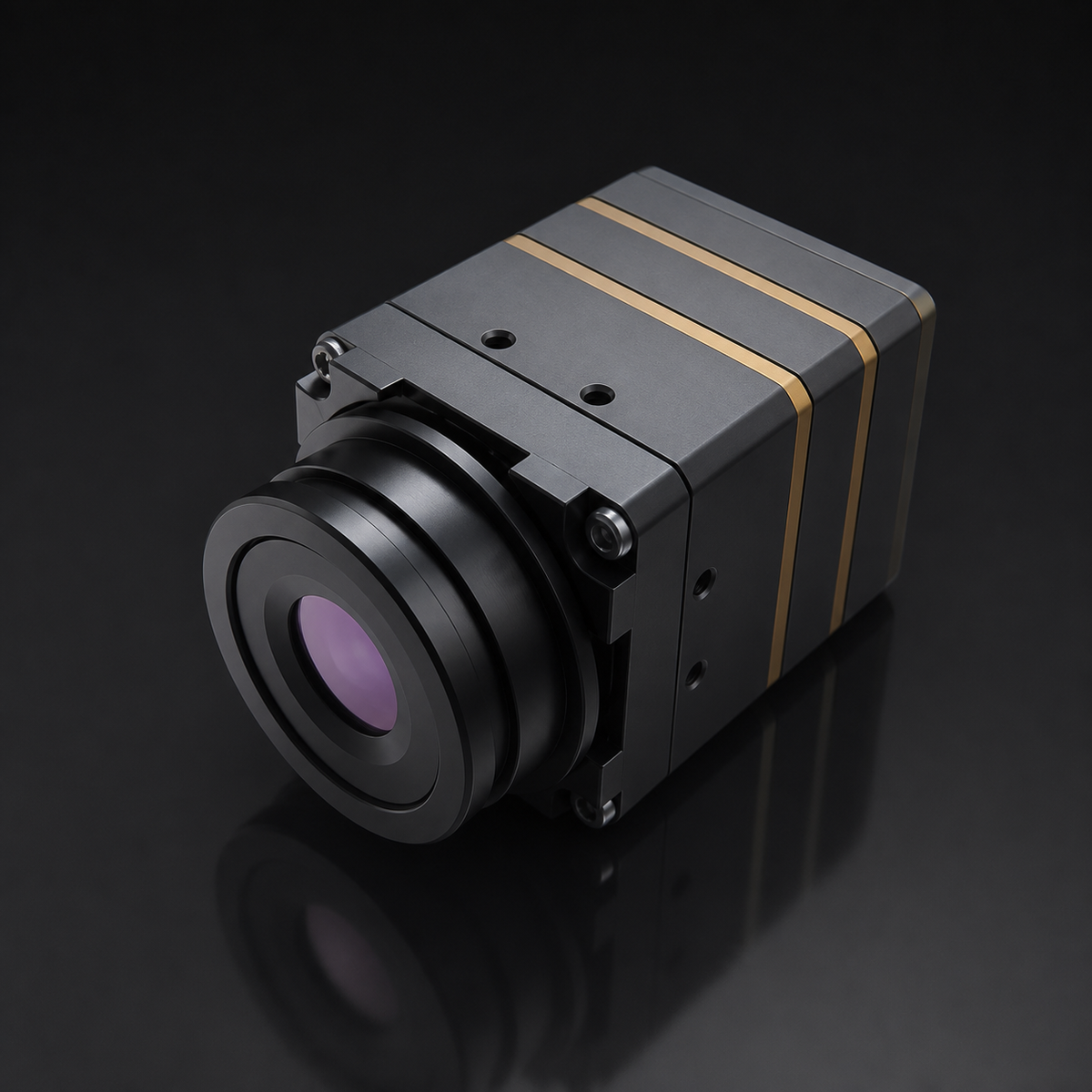

• Compact uncooled thermal imaging core designed for UAVs, vehicles, marine platforms, outdoor search and embedded systems.
• 384 × 288 VOx detector with 17 μm pixel pitch and NETD below 40 mK.
• Supports UVC, CVBS with expansion board, and RJ45 video output for flexible system integration.
• Built-in image processing including NUC, intelligent gain control, detail enhancement and 3D noise reduction.
• Supports full-frame hot/cold spot tracking and center-point temperature display.
• Multiple color palettes and ×1 / ×2 / ×4 / ×8 digital zoom for different observation requirements. 03_Digital_Analog_Thermal_Core_Updated_EN.pptx
Key Specifications
• Model: SC-387CAG
• Detector: VOx Uncooled Infrared Focal Plane Array
• Resolution: 384 × 288
• Pixel pitch: 17 μm
• Spectral range: 8–14 μm
• NETD: <40 mK (@F1.0, 300K)
• Color palettes: White Hot, Black Hot, Iron Red, Red Hot, Rainbow, etc.
• Image processing: NUC, Intelligent Gain Control, Detail Enhancement, 3D Noise Reduction
• Image flip: Vertical / Horizontal / Center
• Digital zoom: ×1 / ×2 / ×4 / ×8
• Temperature range: −20°C to +150°C; expandable to +550°C
• Thermometry: Full-Frame Hot/Cold Spot Tracking and Center-Point Temperature Display
• Input voltage: DC 5V; expansion board supports DC 5–18V
• Typical power: 0.8W without expansion board / 0.9W with expansion board
• Video output: UVC / CVBS (with Expansion Board) / RJ45
• Serial interface: UART
• Dimensions without lens: 26 × 26 × 34.7 mm without board / 26 × 26 × 41.2 mm with board
• Weight without lens: 28.4 g without board / 32.6 g with board
