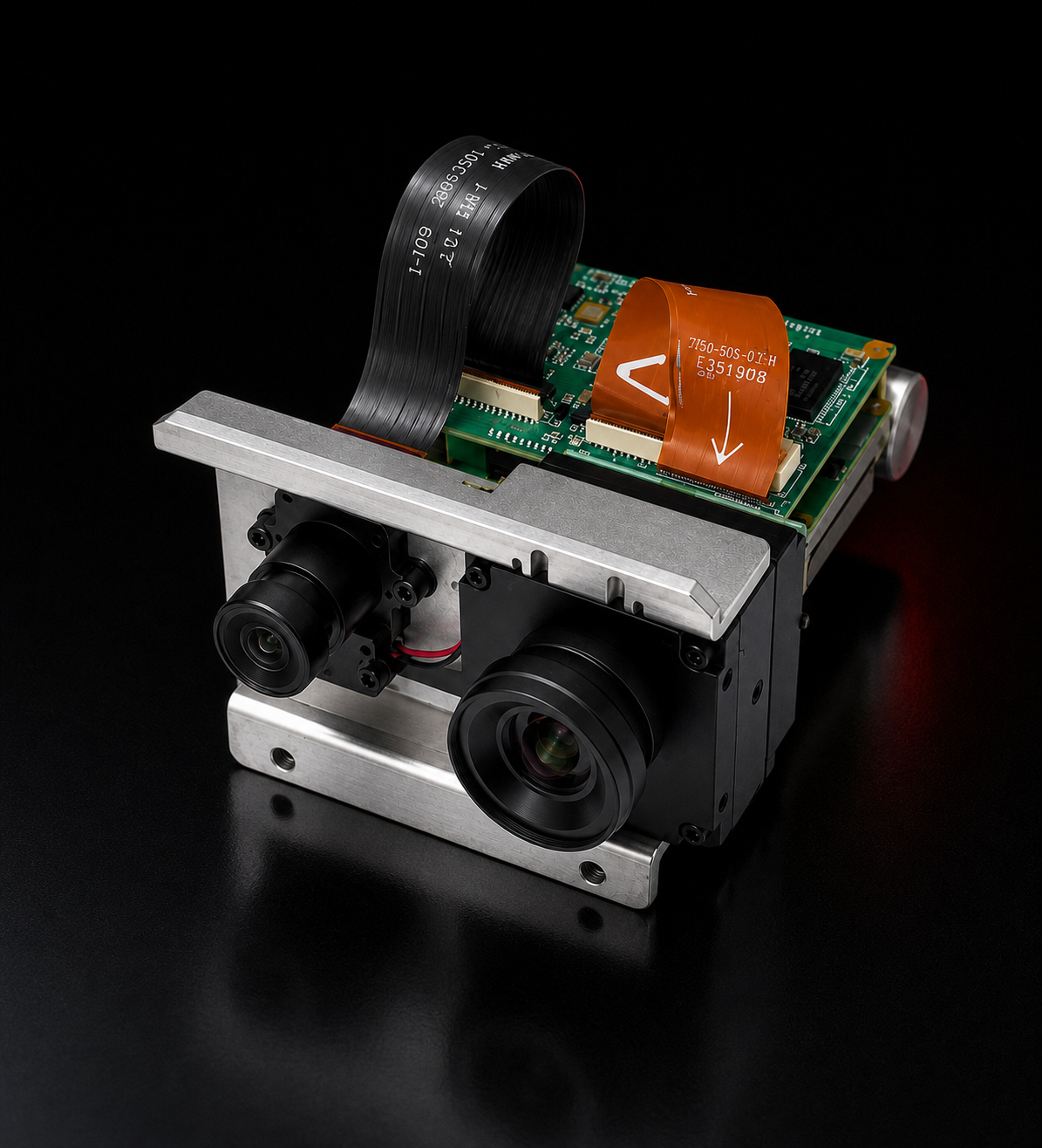

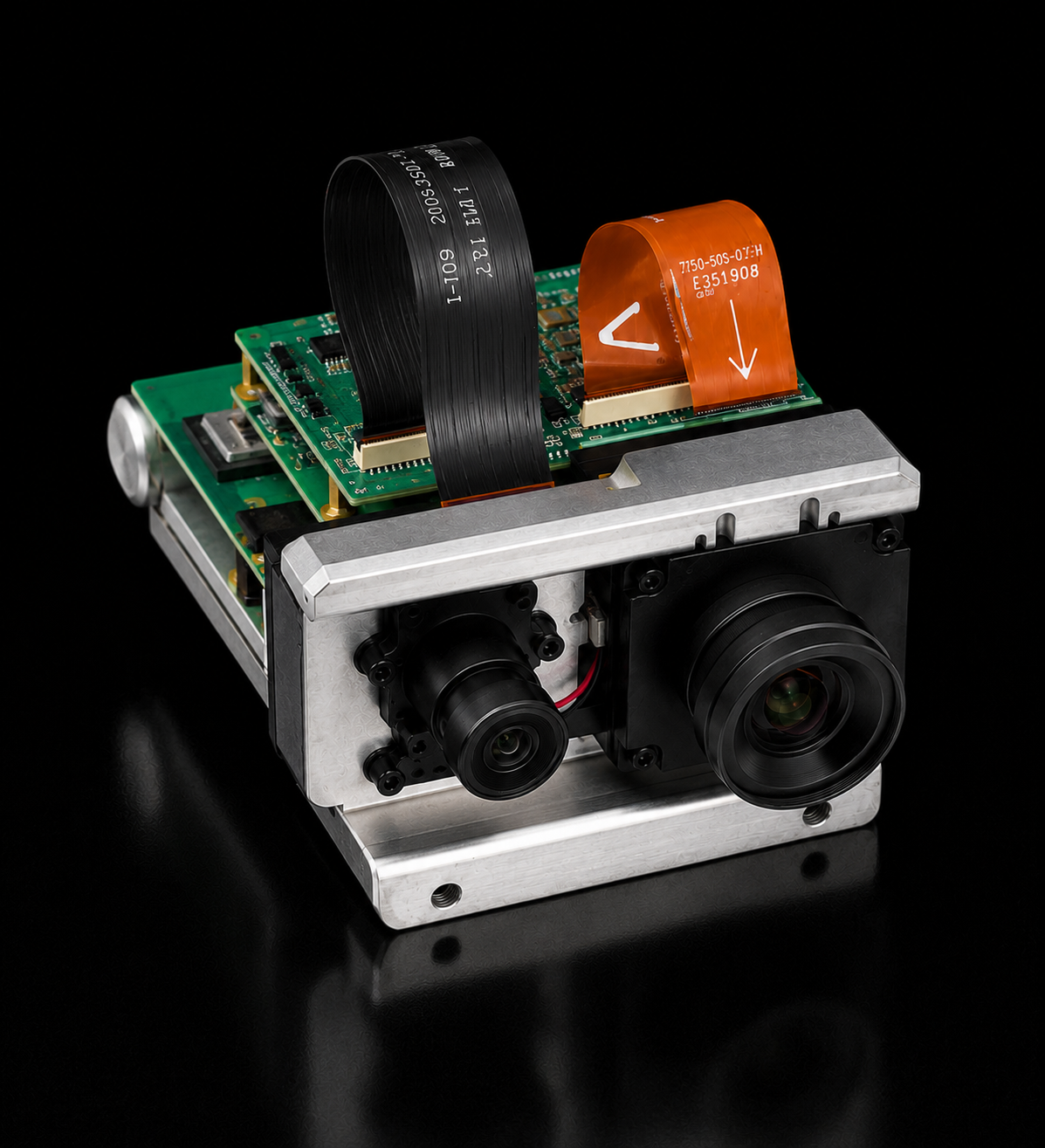

384 × 288 | Dual-Spectrum | Edge AI | Temperature Measurement
Product Features
• Dual-spectrum module combining 384 × 288 thermal imaging with a 2592 × 1526 visible-light camera.
• Built-in edge AI for real-time intelligent thermal imaging applications.
• Supports line crossing, region entry and exit detection.
• Supports point, line and area temperature measurement and analysis.
• Supports NUC, intelligent gain control, detail enhancement and 3D noise reduction.
• Designed for network integration with RJ45, RS485, alarm and audio interfaces.
Key Specifications
• Detector: VOx uncooled infrared focal plane array
• Thermal resolution: 384 × 288
• Pixel pitch: 17 μm
• Spectral range: 8–14 μm
• NETD: ≤40 mK (@F1.0, 300K)
• Color palettes: White Hot, Black Hot, Iron Red, Red Hot, Rainbow, etc.
• Image processing: NUC, Intelligent Gain Control, Detail Enhancement, 3D Noise Reduction
• Visible-light sensor: 1/2.8" CMOS
• Visible-light resolution: 2592 × 1526
• Minimum illumination: 0.002 Lux/F1.5 (Color), 0.0002 Lux/F1.5 (B/W)
• IR illumination: 30 m
• Day/Night switching: ICR Infrared-Cut Filter
• Temperature range: −20°C to +150°C; 0°C to +550°C
• Measurement accuracy: ±2°C or ±2% of reading, whichever is greater
• Measurement analysis: Point, Line and Area Analysis
• AI events: Line Crossing, Region Entry and Exit Detection
• Network port: RJ45
• Serial interface: RS485
• Alarm I/O: 2 Inputs / 2 Outputs
• Audio I/O: 1 Input / 1 Output
• Power supply: 12V DC
• Typical power: 2W @25°C
• Dimensions: 77 × 46.5 × 143.8 mm
• Weight: 158 g (without bracket)
