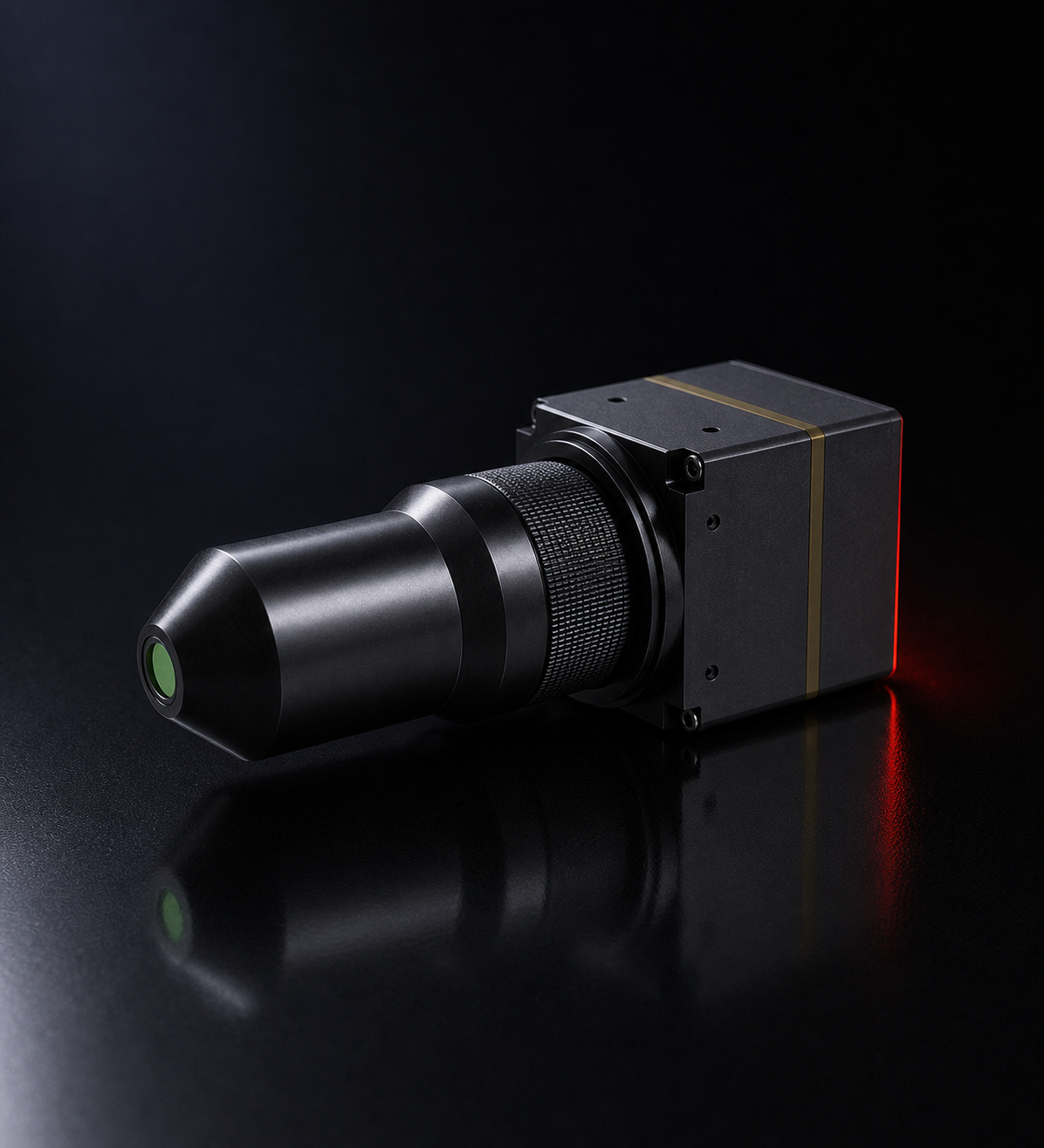

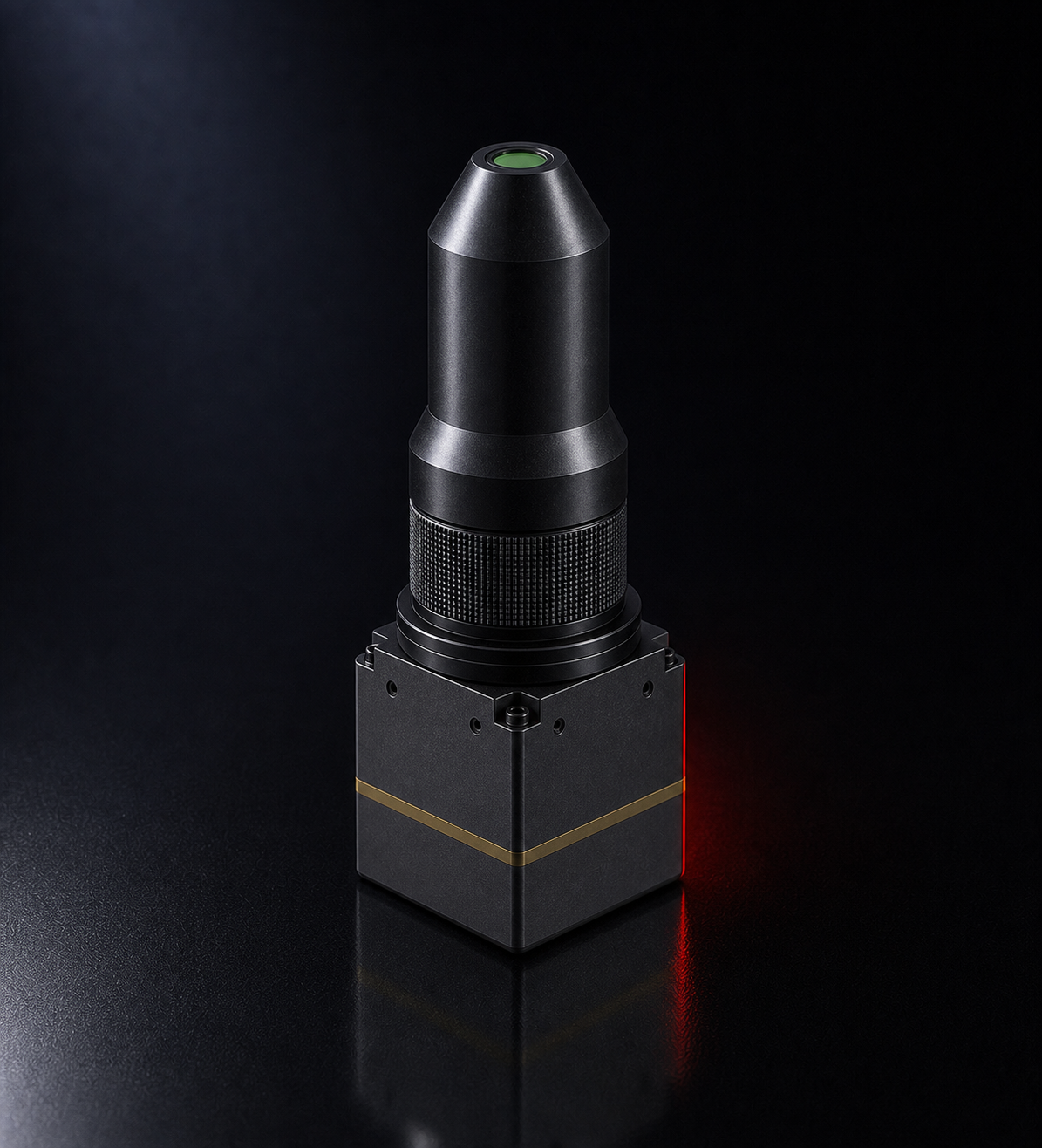

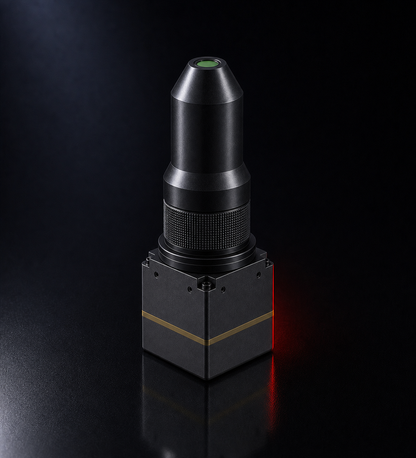

TM03P High-Temperature Thermography Core

384 × 288 | High-Temperature | Up to 1600°C | Compact Design

Product Features

• Compact high-temperature uncooled thermal imaging core for industrial thermography and monitoring.

• Supports three measurement ranges: −20°C to +150°C, 0°C to +550°C and 500°C to +1600°C.

• Supports point, line and area temperature measurement and analysis.

• Supports NUC, intelligent gain control, detail enhancement and 3D noise reduction.

• Supports Windows/Linux SDK, HTTP and ONVIF for system integration and secondary development.

• Suitable for mineral processing, metal smelting and other high-temperature industrial environments.

Key Specifications

• Detector: Amorphous-Silicon uncooled infrared FPA
• Resolution: 384 × 288
• Pixel pitch: 17 μm
• Spectral range: 8–14 μm
• NETD: ≤40 mK @25°C
• Contrast & brightness: Auto / Manual
• Color palettes: White Hot, Black Hot, Iron Red, Red Hot, Rainbow, etc.
• Image processing: NUC, Intelligent Gain Control, Detail Enhancement, 3D Noise Reduction
• Video format: H.264
• Main stream: 720 × 576 @25 fps
• Temperature range: −20°C to +150°C; 0°C to +550°C; 500°C to +1600°C
• Measurement accuracy: ±2°C or ±2% of reading, whichever is greater
• Measurement analysis: Point, Line and Area Analysis
• Integration protocols: SDK (Windows/Linux), HTTP, ONVIF
• Video output: RJ45
• Serial interface: RS485
• Alarm I/O: 1 Input / 1 Output
• Power supply: DC 12V
• Typical power: 0.9W @25°C
• Dimensions: 38 × 38 × 39 mm (without lens)
• Weight: 85.5 g (without lens)
