Product Features

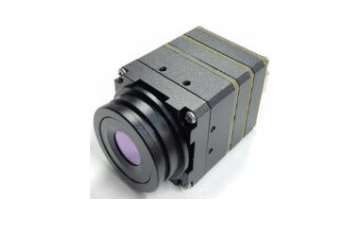

• Compact low-power core for cost-sensitive thermal products.
• Good image quality with multiple lens options.
• BT.656/UVC output, with optional CVBS through expansion
component.
• Easy integration for UAV, handheld and embedded thermal
applications.
Key Specifications
• Detector: VOx uncooled infrared FPA
• Resolution: 256 x 192
• Pixel pitch: 12 um
• Spectral range: 8-14 um
• Frame rate: 50 fps
• NETD: <40 mK (@F1.0, 300K)
• Video output: BT.656 / UVC / optional CVBS
• Image mirror: vertical, horizontal, center
• Digital zoom: x1 / x2 / x4 / x8
• Power: 5-12 V DC, typical 0.9 W
• Interface: BT.656/UVC/CVBS optional, UART
• Lens options: 4.6, 7, 10, 15, 19, 25, 50 mm
• Size/weight: approx. 25 x 26 x 29 mm, approx. 21.4g
Applications:
Compact UAV payloads, handheld thermal devices, robots, security and firefighting products.
