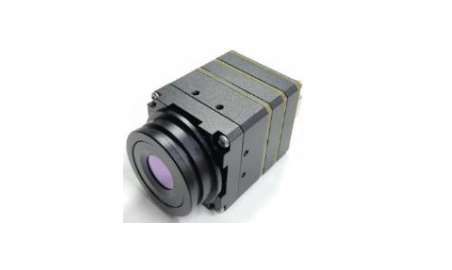

Product Features
• Low power consumption and clear thermal image quality.
• Multiple lens options for measurement and observation applications.
• BT.656/UVC output, with optional CVBS through expansion
component.
• Suitable for UAV, handheld temperature measurement, security and
robotics.
Key Specifications
• Detector: VOx uncooled infrared FPA
• Resolution: 384 x 288
• Pixel pitch: 17 um
• Spectral range: 8-14 um
• Frame rate: 50 fps
• NETD: <40 mK (@F1.0, 300K)
• Video output: BT.656 / UVC / optional CVBS
• Image mirror: vertical, horizontal, center
• Digital zoom: x1 / x2 / x4 / x8
• Power: 5-12 V DC, typical 0.9 W
• Interface: BT.656/UVC/CVBS optional, UART
• Lens options: 4.6, 7, 10, 15, 19, 25, 50 mm
• Size/weight: 25 x 26 x 36.7 mm, approx. 30 g

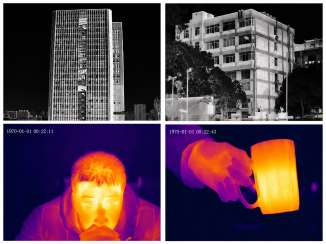

Applications:
UAVs, handheld devices, security monitoring, industrial temperature measurement and robots.
