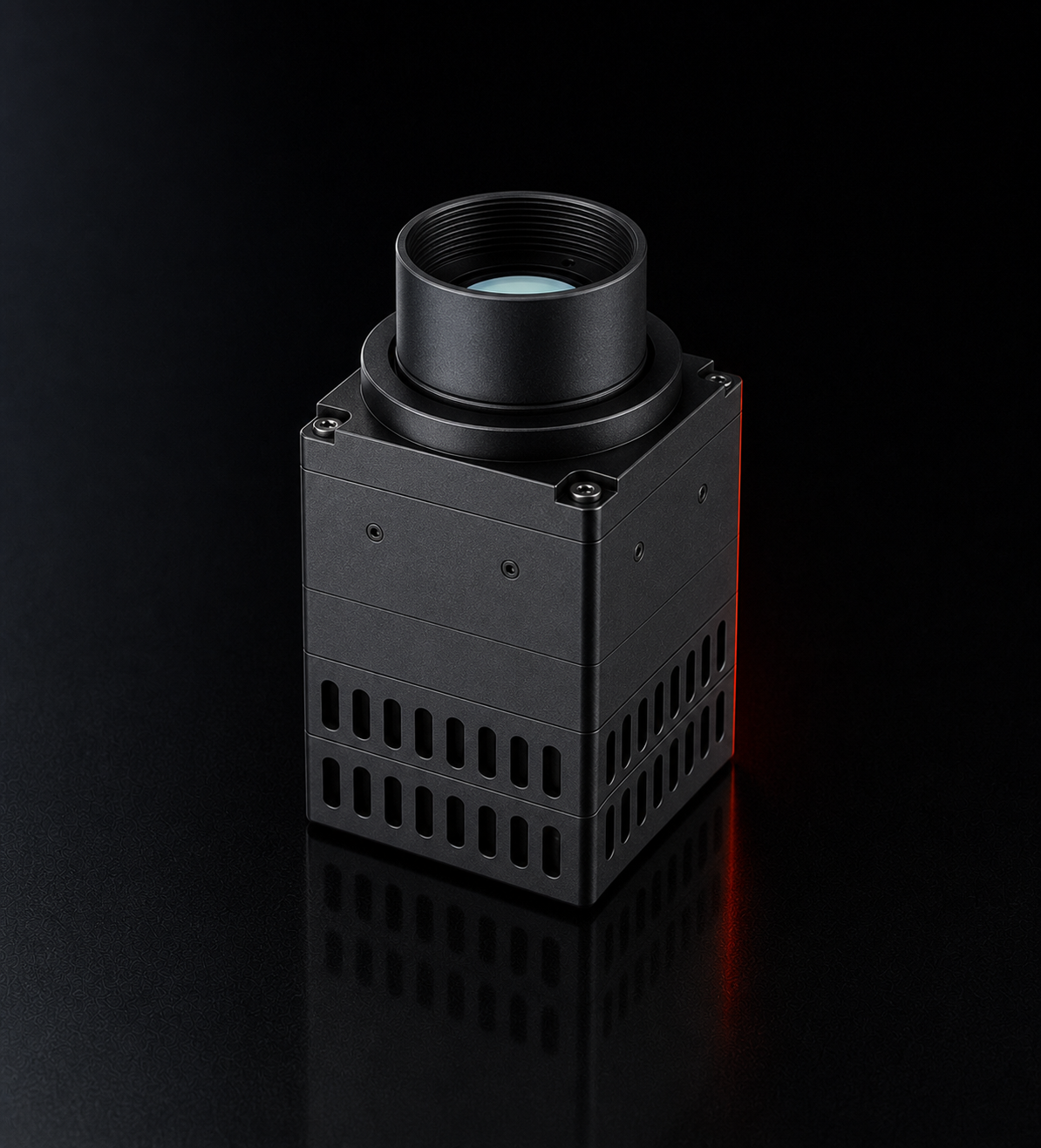

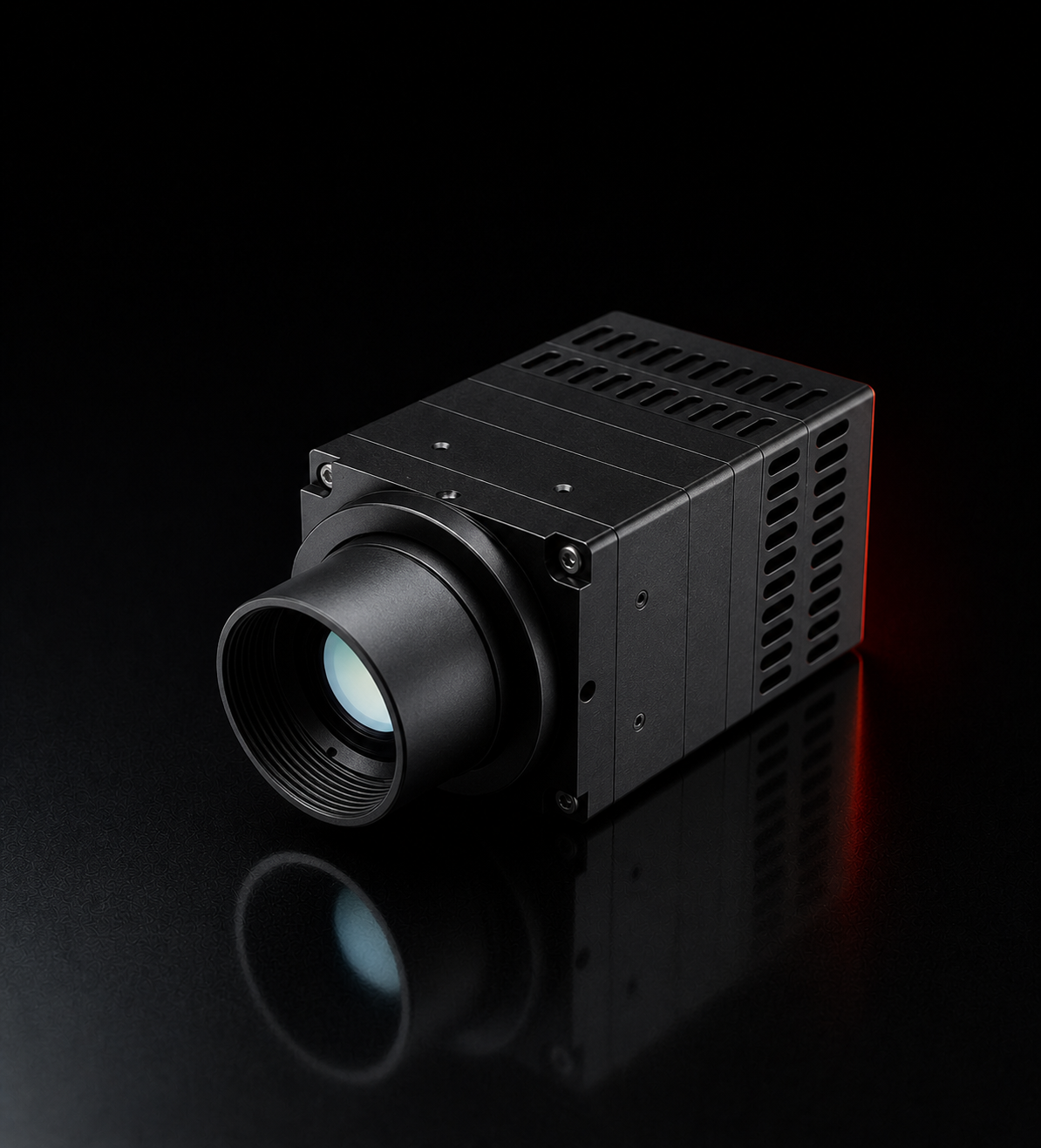

TM16P Network Thermal Imaging Core

640 × 512 | Network Output | Radiometric Temperature Measurement

Product Features
• High-sensitivity 640 × 512 VOx uncooled thermal detector.
• Supports point, line and area temperature measurement and analysis.
• Wide temperature measurement range up to +550°C.
• Advanced image processing with NUC, intelligent gain control, detail enhancement and 3D noise reduction.
• Supports SDK, HTTP and ONVIF for secondary development and system integration.

Key Specifications
• Detector: VOx uncooled infrared focal plane array
• Resolution: 640 × 512
• Pixel pitch: 12 μm
• Spectral range: 8–14 μm
• NETD: ≤35 mK @25°C
• Video: H.264, up to 1280 × 1024 @25 fps
• Temperature range: −20°C to +150°C; 0°C to +550°C
• Accuracy: ±2°C or ±2% of reading, whichever is greater
• Measurement analysis: Point, line and area
• Protocols: SDK (Windows/Linux), HTTP, ONVIF
• Video output: RJ45
• Serial interface: RS485
• Power supply: DC 12V
• Dimensions: 45 × 45 × 45 mm (without lens)
• Weight: 113 g (without lens)
