Product Features
• Maximum temperature measurement range up to 1600℃.
• Imported amorphous silicon detector, resistant to high-temperature
burn-in.
• Self-developed temperature measurement algorithm for
measurement accuracy.
• Supports SDK, HTTP and ONVIF for secondary development.
Key Specifications
• Detector: amorphous silicon uncooled infrared FPA
• Resolution: 384 x 288
• Pixel pitch: 17 um
• Spectral range: 8-14 um
• NETD: <=50 mK (@F1.0, 300K)
• Video stream: H.264 main stream, 720 x 576 @25 fps
• Temperature ranges: normal -20℃ to +150℃; medium 0℃ to +550℃; high 400
℃ to +1600℃
• Accuracy: +/-2℃ or +/-2%, whichever is greater
• Measurement analysis: point, line and area
• Power: 9-14 V DC, typical 0.9 W
• Interfaces: RJ45, RS232/RS485, alarm I/O
• Size: 38 x 38 x 39 mm
• Protocols: SDK (Windows/Linux), HTTP, ONVIF

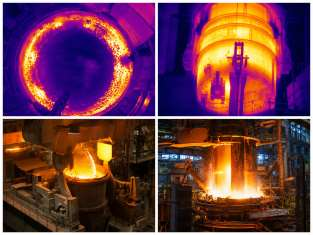

Applications:
Furnaces and kilns, metallurgy, energy and chemical industry, high-temperature monitoring and industrial automation.
