Product Features
• High-resolution ultra-high temperature thermal core.
• Maximum temperature measurement range up to 1600 C.
• Amorphous silicon detector with high-temperature resistance.
• Self-developed temperature algorithm and SDK/HTTP/ONVIF
support.
Key Specifications
• Detector: amorphous silicon uncooled infrared FPA
• Resolution: 640 x 480
• Pixel pitch: 17 um
• Spectral range: 8-14 um
• NETD: <=50 mK (@F1.0, 300K)
• Video stream: H.264 main stream, 720 x 576 @25 fps
• Temperature ranges: normal -20℃ to +150℃; medium 0℃ to +550℃; high 400
℃ to +1600℃
• Accuracy: +/-2℃ or +/-2%, whichever is greater
• Measurement analysis: point, line and area
• Power: 9-14 V DC, typical 0.9 W
• Interfaces: RJ45, RS232/RS485, alarm I/O
• Size: 45 x 45 x 45 mm
• Protocols: SDK (Windows/Linux), HTTP, ONVIF
Applications:

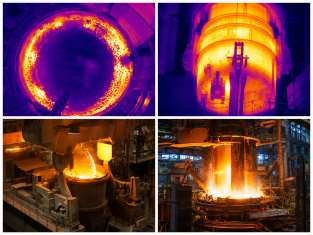

Furnaces and kilns, metallurgy, energy and chemical industry, high-temperature monitoring and industrial automation.
