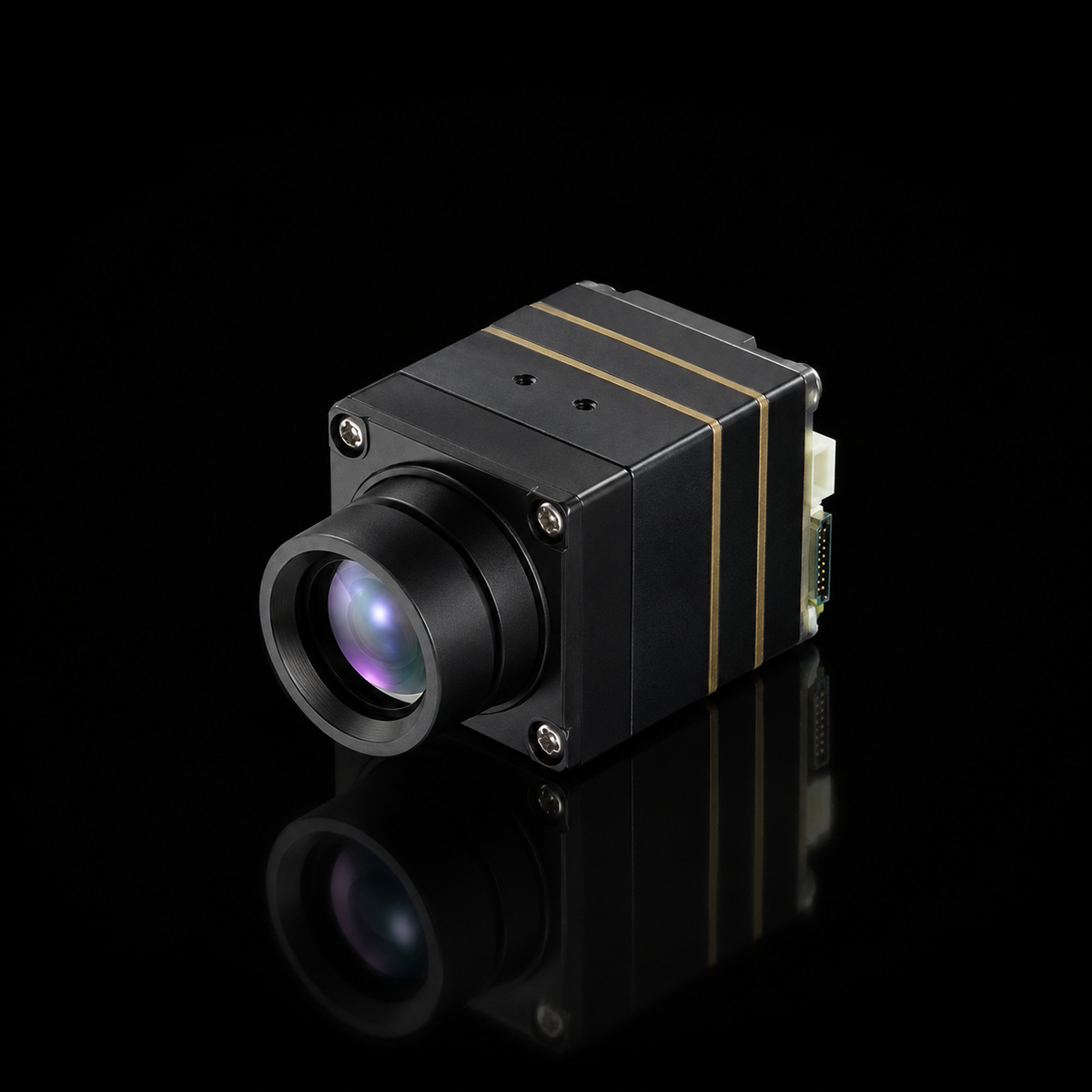

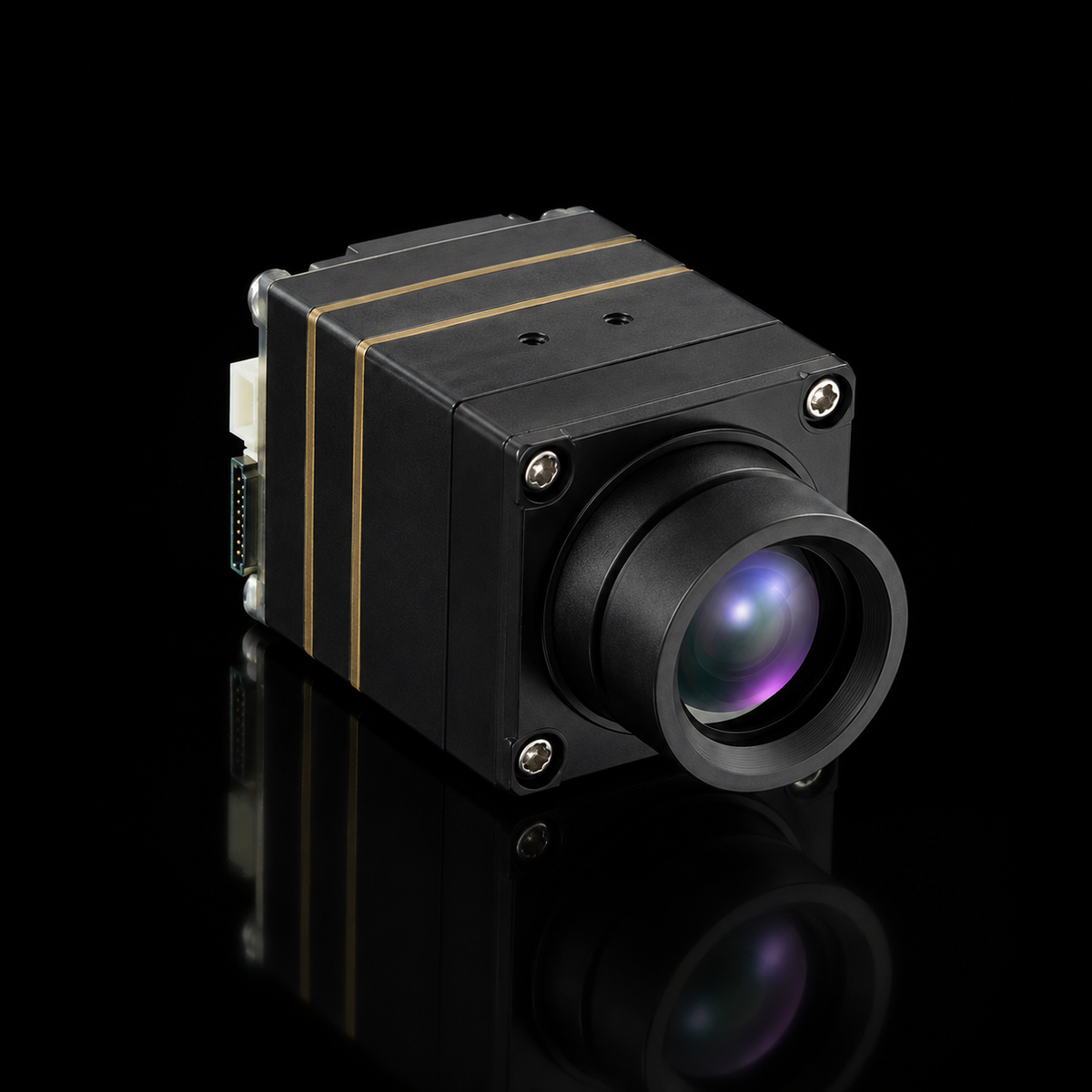

FPV384 Mini

384 × 288 | 12 μm | Ultra-Compact | Temperature Measurement

Product Features

• Ultra-compact uncooled thermal imaging core designed for UAV, FPV and embedded applications.

• 384 × 288 VOx detector with 12 μm pixel pitch.

• Supports multiple thermal palettes including White Hot, Black Hot, Iron Red, Red Hot and Rainbow.

• Supports NUC, intelligent gain control, detail enhancement and 3D noise reduction.

• Supports full-frame hot/cold spot tracking and center-point temperature display.

• Supports UVC / CVBS video output and UART serial communication.

Key Specifications

• Detector: VOx uncooled infrared focal plane array
• Resolution: 384 × 288
• Pixel pitch: 12 μm
• Spectral range: 8–14 μm
• NETD: <40 mK (@F1.0, 300K)
• Color palettes: White Hot, Black Hot, Iron Red, Red Hot, Rainbow, etc.
• Image processing: NUC, intelligent gain control, detail enhancement, 3D noise reduction
• Image flip: Vertical, Horizontal, Center
• Digital zoom: ×1, ×2, ×4, ×8
• Temperature range: −20°C to +150°C; expandable to +550°C
• Thermometry: Full-frame hot/cold spot tracking and center-point temperature display

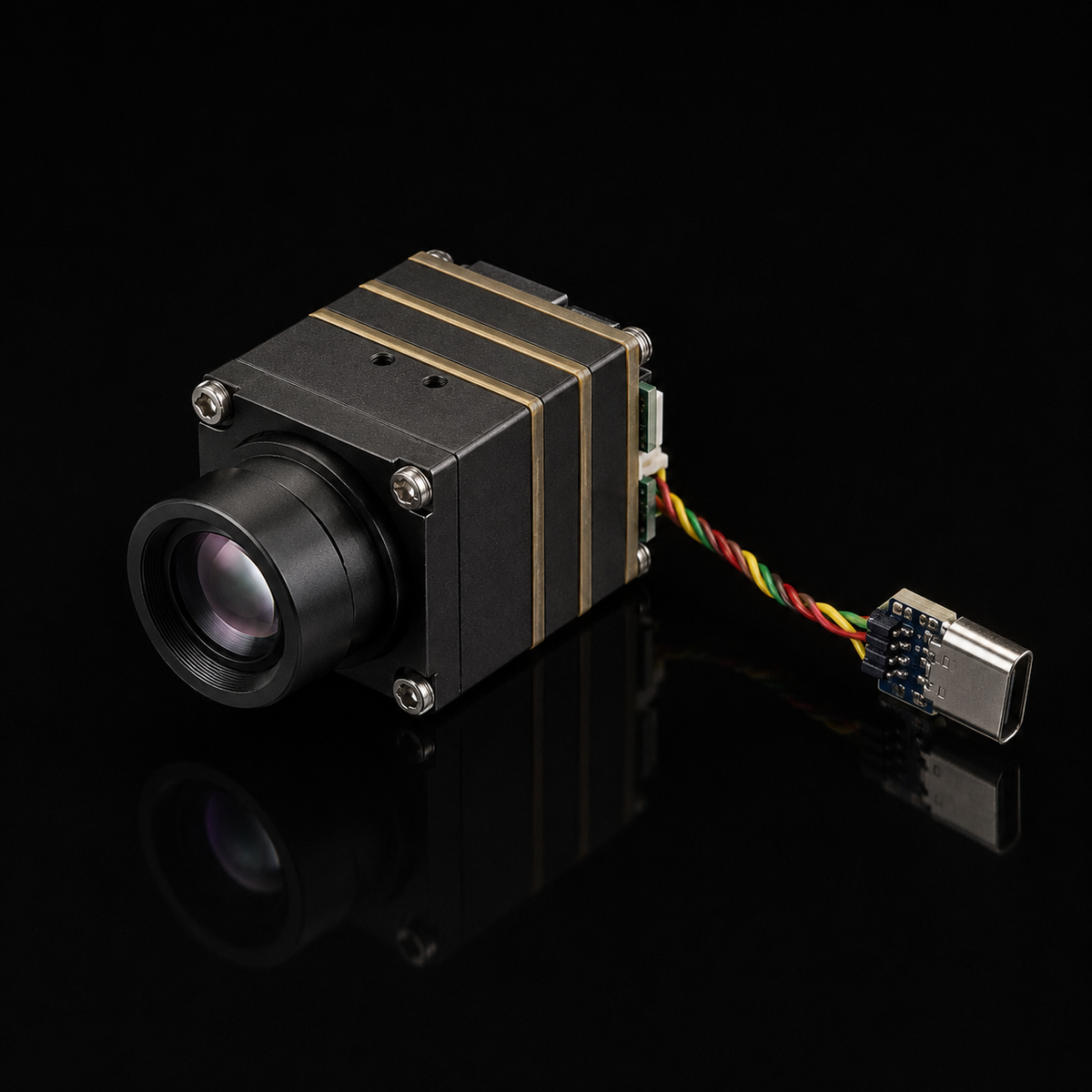

• Video output: UVC / CVBS (with expansion board)
• Serial interface: UART
• Input voltage: DC 5V; expansion board supports DC 5–18V
• Typical power: 0.6W @25°C
• Dimensions: 17 × 17 × 23 mm (without lens)
• Weight: 9.8 g (without lens)
