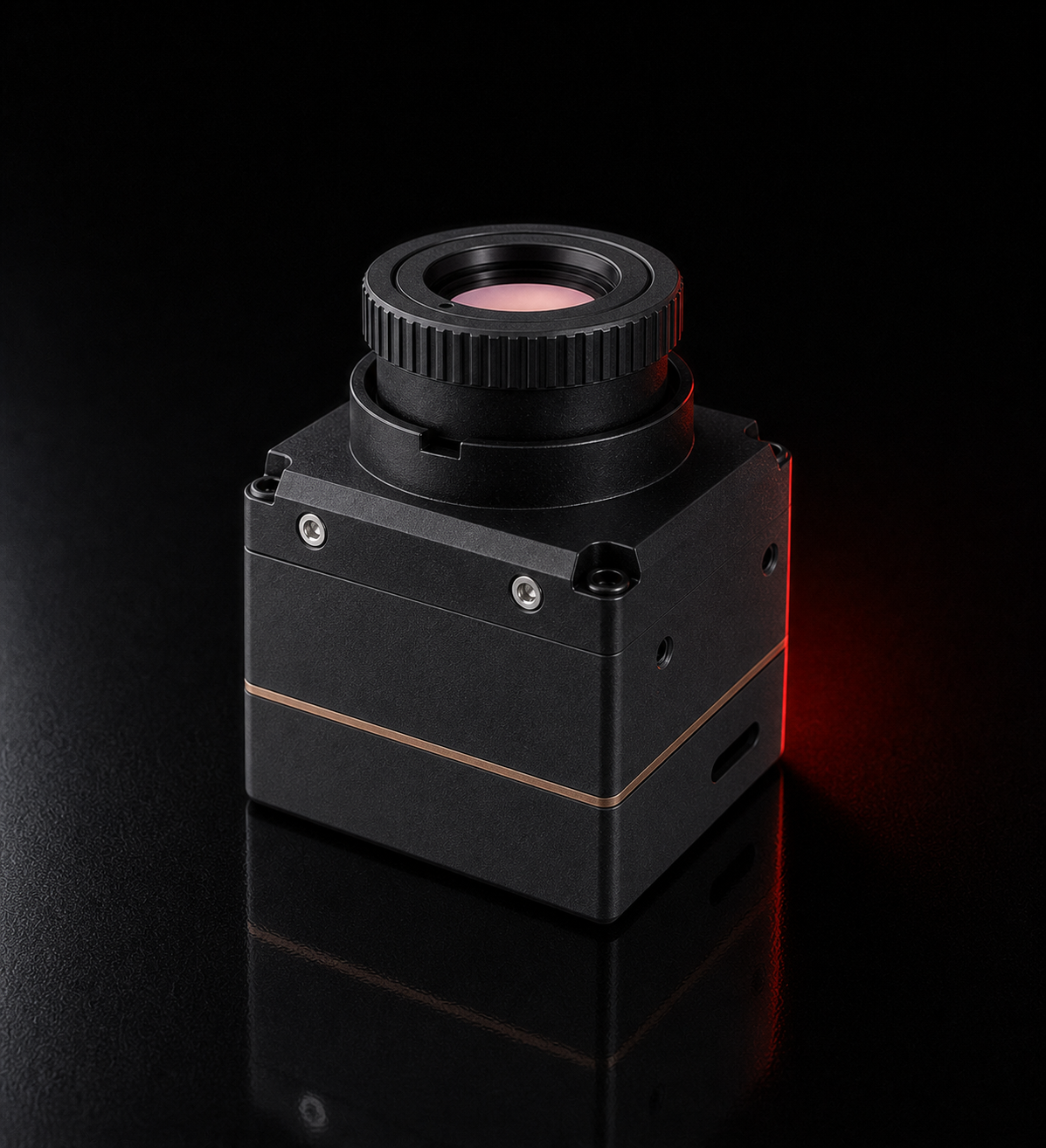

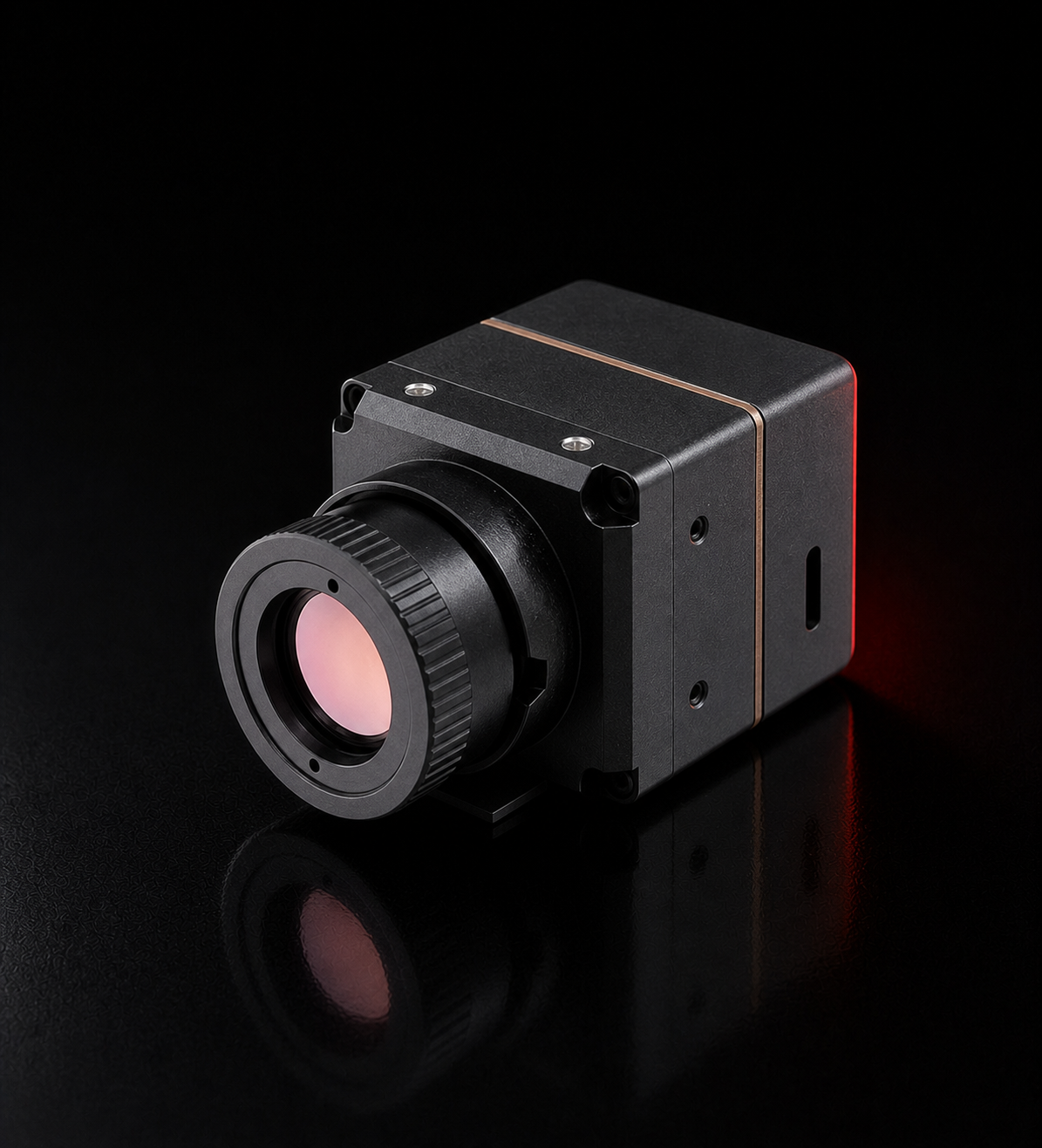

TM13P Network Thermal Imaging Core

384 × 288 | Network Output | Temperature Measurement | SDK Integration

Product Features

• 384 × 288 VOx uncooled thermal imaging core designed for industrial thermography and monitoring applications.

• Supports accurate temperature measurement with point, line and area analysis.

• Multiple image processing functions including NUC, intelligent gain control, detail enhancement and 3D noise reduction.

• Supports Windows/Linux SDK, HTTP and ONVIF for secondary development and system integration.

• Wide temperature measurement range from −20°C to +150°C and 0°C to +550°C.

Key Specifications

• Detector: VOx uncooled infrared focal plane array

• Resolution: 384 × 288

• Pixel pitch: 17 μm

• Spectral range: 8–14 μm

• NETD: ≤40 mK @25°C

• Color palettes: White Hot, Black Hot, Iron Red, Red Hot, Rainbow, etc.

• Image processing: NUC, Intelligent Gain Control, Detail Enhancement, 3D Noise Reduction

• Video format: H.264

• Main stream: 720 × 576 @25 fps

• Temperature range: −20°C to +150°C; 0°C to +550°C

• Measurement accuracy: ±2°C or ±2% of reading, whichever is greater

• Measurement analysis: Point, Line and Area Analysis

• Integration protocols: SDK (Windows/Linux), HTTP, ONVIF

• Video output: RJ45

• Serial interface: RS485

• Alarm I/O: 1 Input / 1 Output

• Power supply: DC 12V

• Typical power: 0.9W @25°C

• Dimensions: 38 × 38 × 39 mm (without lens)

• Weight: 85.5 g (without lens)
